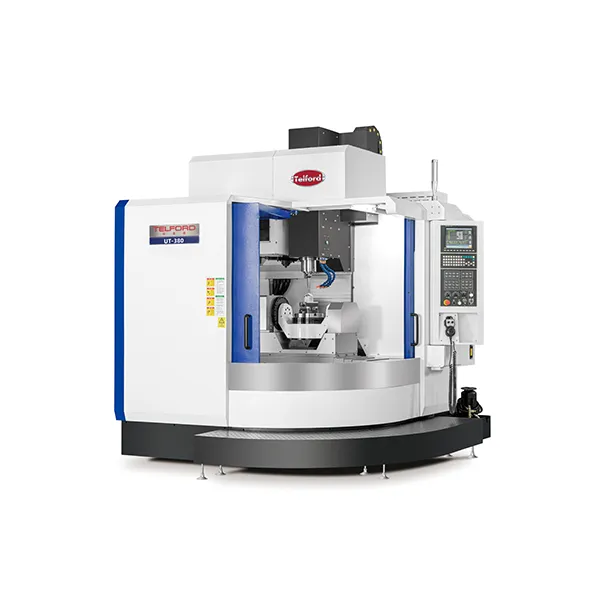

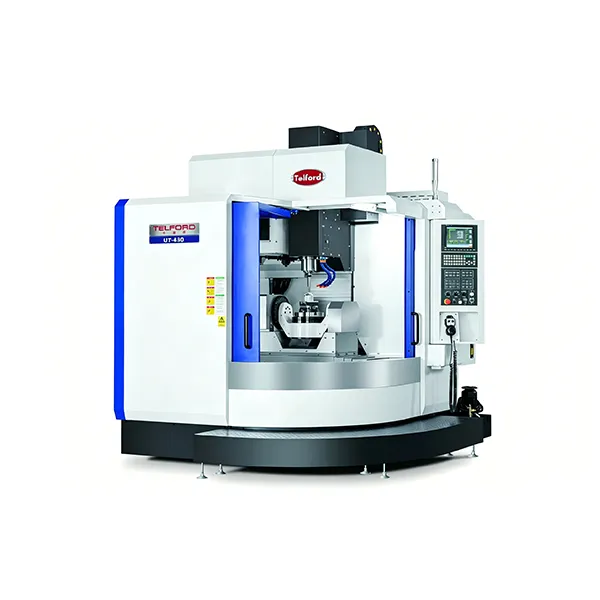

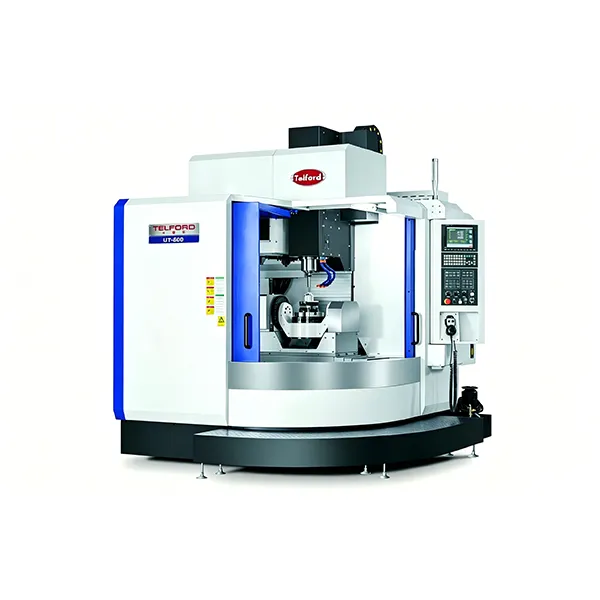

UT-380/430/500/600 are high-performance 5-axis machining centers with rigid structure and high-precision DD rotary tables. They feature high-speed spindles, stable accuracy, and strong versatility, ideal for complex parts in aerospace, automotive, mold and precision machinery manufacturing.
| Specification | Unit | UT-380-5X | |
| Workbench | Worktable(rotary table) | mm | Φ260 |
| Max load | KG | 100 | |
| T-slot | mm | 5*18*90 | |
| Travel | X-axis travel | mm | 500 |
| Y-axis travel | mm | 510 | |
| Z-axis travel | mm | 450 | |
| A-axis swing angle | ±120 | ||
| C-axis swing angle | 0.001 | ||
| Distance from spindle center to worktable | mm | 37-487 | |
| Spindle | Spindle taper | ISO | BT-40 |
| Spindle nose diameter | mm | Φ120 | |
| Spindle speed | rpm | Direct drive:15000 | |
| Feed rate | X/Y/Z-axis cutting feed rate | mm/min | 1-10000 |
| X/Y/Z-axis rapid traverse rate | m/min | 36/36/36 | |
| X/Y/Z-axis minimum setting unit | mm | 0.001 | |
| Drive motor | Spindle motor | kw | 5.5/7.5 |
| XY/Z-axis servo motors | kw | 1.8/1.8/3.0 | |
| Spindle lubrication cycle motor | W | 120 | |
| Coolant pump motor | kw | 0.76 | |
| Toolmagazine | Tool magazine capacity | PCS | 24 |
| Tool selection method | Shortest path selection | ||
| Maximum tool diameter/length | mm | Φ80/300 | |
| Maximum tool weight | kg | 8 | |
| Tool holder type | BT-40 | ||
| Accuracy | Positioning accuracy | mm | ±0.003/300 |
| Repeat positioning accuracy | mm | ±0.002 | |
| Others | Tool-to-tool time | SEC | 1.5 |
| Machine dimensions(L×H×W) | mm | 2800×2100×2300 | |
| Machine weight | kg | 4300 | |
CNC 5-axis machining centers are widely used in aerospace, automotive and mold industries to process complex curved parts with high precision and efficiency.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
