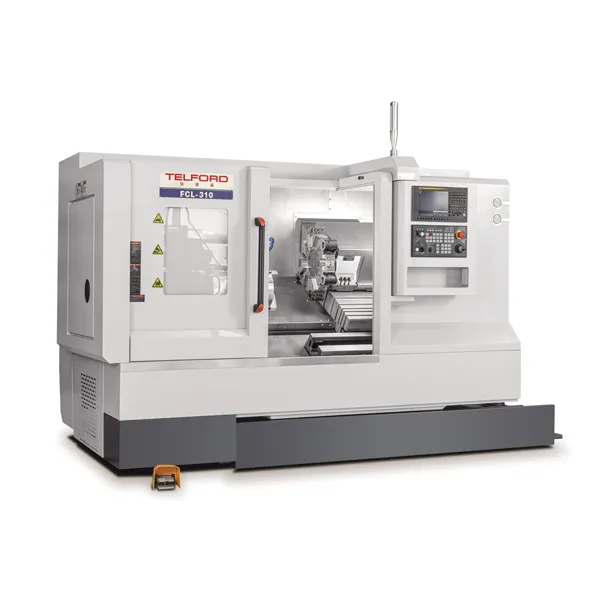

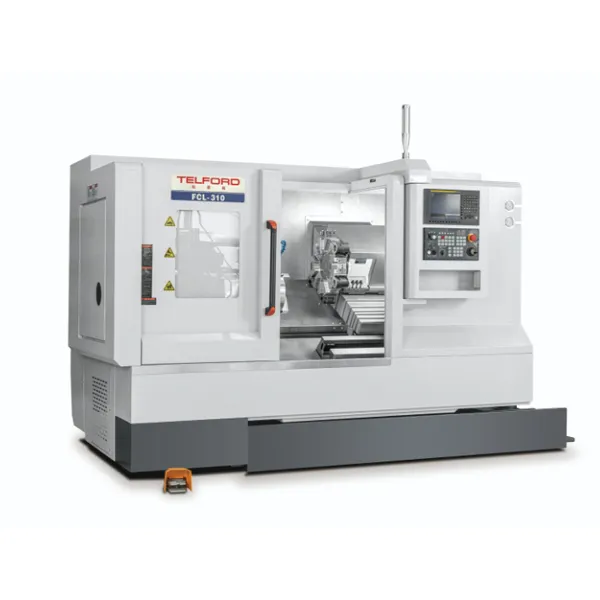

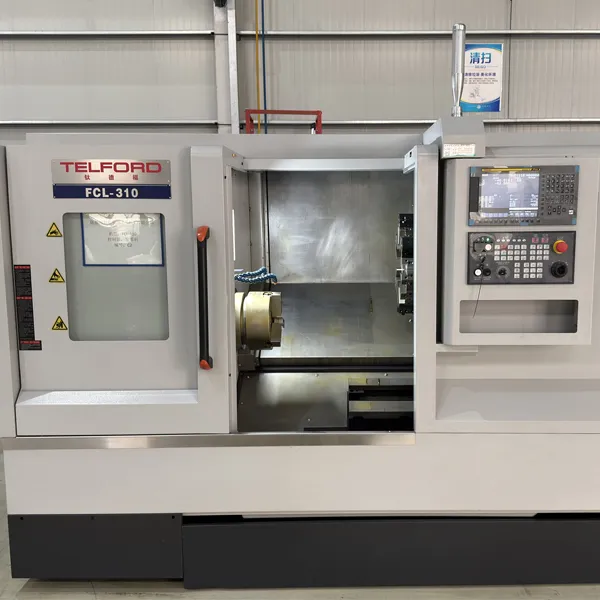

The FCL-310 CNC Lathe is a high-performance turning solution designed for speed and precision. Featuring a compact yet rigid footprint, it offers exceptional stability for small-to-medium part production. With its high-speed spindle and rapid indexing turret, the FCL-310 ensures maximum throughput and superior surface finishes for demanding industrial applications.
| Specification | Unit | FCL-310 |
| Max. swing diameter of bed | mm | Φ650 |
| Saddle surface diameter | mm | Φ430 |
| Max, length of work piece | mm | Φ500 |
| Max. diameter of work piece | mm | 650 |
| Spindle head type | ASA | A2-8 |
| Hydraulic chuck size | in | 10 |
| Spindle bore diameter | mm | Φ88 |
| Spindle speed | rpm | 3500 |
| Spindle motor | kw | 15/18.5 |
| Spindle accuracy | mm | 0.003 |
| Max. Bar bore diameter | mm | Φ75 |
| Z-axis travel | mm | 650 |
| X-axis travel | mm | 280 |
| Z-axis rapid movement | m/min | 24 |
| X-axis rapid movement | m/min | 20 |
| Magazine | unit | 12 |
| Turning tool size | mm | 25×25 |
| Lining tool size | mm | 40 |
| Tail stoke base travel | mm | 480 |
| Quil travel | mm | 100 |
| Quill diameter | mm | 120 |
| Quill bore taper | MT | MT#5 |
| Top center drive mode | Hydraulic | |
| Tail stock positioning method | Manual | |
| Overall dimensions | M | 2.80×1.80×1.96 |
| Mechanical weight | kg | 5200 |
The FCL-310 integral bed structure provides excellent seismic performance. Easily master batch processing of precision shafts, flanges, etc., reducing costs and increasing efficiency for customers in the aerospace and automotive industries

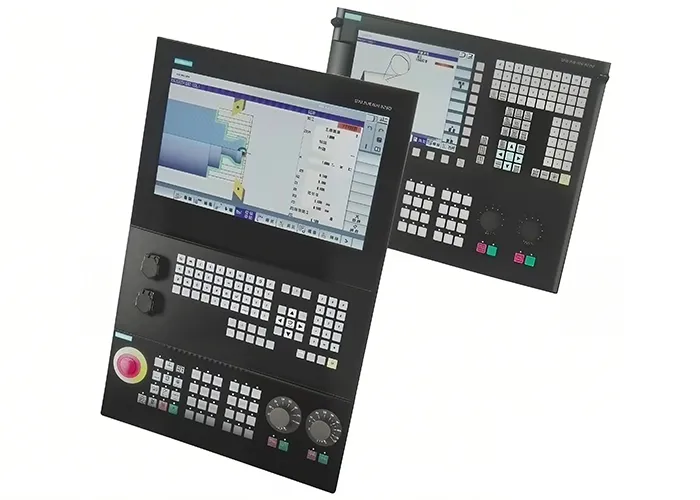

The FCL-310 has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget
