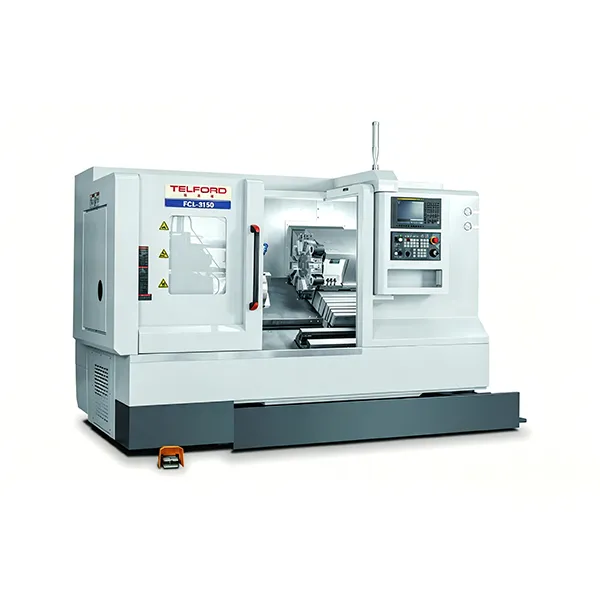

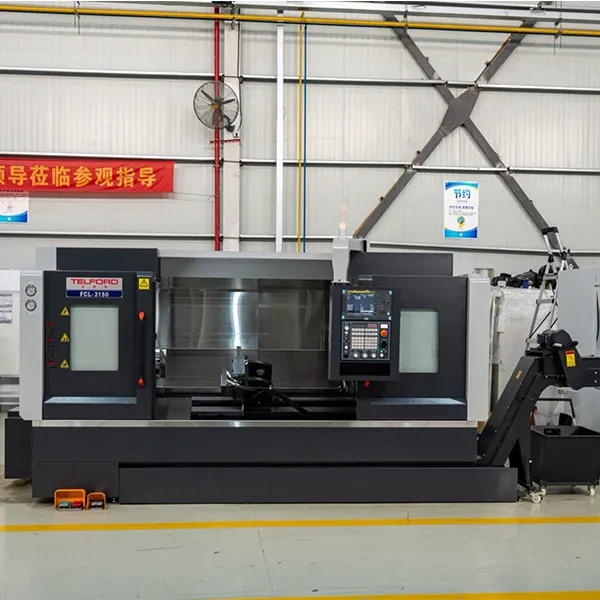

FCL-3150 is a heavy-duty CNC lathe with extra-long travel, high rigidity, and stable performance. It features a robust cast structure, high-precision guideways, and reliable drive system, ideal for turning long shafts and large workpieces with high efficiency and accuracy.
| Specification | Unit | FCL-3150 |
| Max.swing diameter of bed | mm | 700 |
| Saddle surface diameter | mm | 430 |
| Max.length of work piece | mm | 500 |
| Max.diameter of work piece | mm | 1600 |
| Spindle head type | ASA | A2-8 |
| Hydraulic chuck size | in | 10 |
| Spindle bore diameter | mm | 88 |
| Spindle speed | rpm | 3500 |
| Spindle motor | kw | 15/18.5 |
| Spindle accuracy | mm | 0.003 |
| Max.Bar bore diameter | mm | 75 |
| Z axis travel | mm | 1650 |
| Xaxis travel | mm | 280 |
| Z axis rapid movement | m/min | 24 |
| Xaxis rapid movement | m/min | 24 |
| Magazine | unit | 12 |
| Turning tool size | mm | 25×25 |
| Lining tool size | mm | 40 |
| Tail stoke base travel | mm | 1480 |
| Quill travel | mm | 100 |
| Quill diameter | mm | 120 |
| Quill bore taper | MT | MT#5 |
| Top center drive mode | Hydraulic | |
| Tail stock positioning method | Manual | |
| Overall dimensions | M | 3.800×1.80×1.96 |
| Mechanical weight | kg | 7500 |
CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.

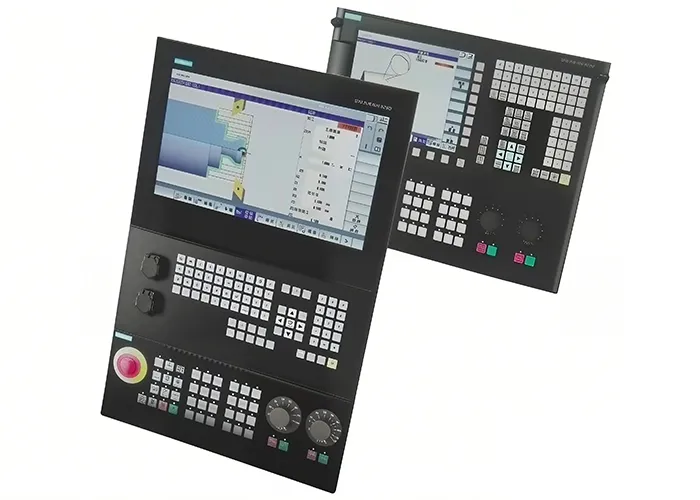

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
