The MCH-630 is a high-performance horizontal machining center. It features a 630mm pallet, rigid structure, powerful spindle, and stable precision. Designed for complex parts, it ensures high efficiency, accuracy, and reliability in automotive, mold, and mechanical manufacturing.
| Item | Function | Unit | MCH-630 Specification |
| Travel | X-axis travel (table left-right movement) | mm | 1050 |
| Y-axis travel (headstock up-down movement) | mm | 750 | |
| Z-axis travel (column front-rear movement) | mm | 900 | |
| Distance from table surface to spindle center | mm | 100-850 | |
| Distance from table centerline to spindle center | mm | 150-1050 | |
| Worktable | Worktable area | mm | 630×700 |
| Maximum load capacity of worktable | kg | 1500 | |
| Worktable surface shape | mm | 5*22*125 | |
| Minimum indexing of worktable | ° | 1° (indexing worktable) | |
| Worktable indexing time | ° | 1.2sec (90°) | |
| Height from ground to worktable surface | mm | 1160 | |
| Spindle | Spindle speed | rpm | 6000 |
| Spindle speed range | Stepless speed | ||
| Spindle taper hole | Taper No.50 | ||
| Feed Rate | Rapid traverse speed (X/Y/Z) | mm/min | 24,000 |
| Cutting feed speed | mm/min | 1-10,000 | |
| Jog feed speed | mm/min | 1-4,000 | |
| Automatic Tool Changer | Tool holder model | MAS BT50 | |
| Pull stud model | MAS P50T-II | ||

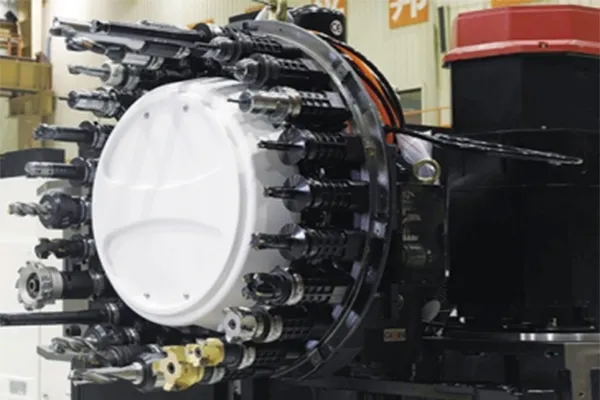

| Tool magazine capacity | 24-position disc (Opt. 40-position chain type) | ||
| Maximum tool diameter | mm | φ100mm (without adjacent tools: φ125mm) | |
| Maximum tool length | mm | 350 | |
| Maximum tool weight | kg | 15kg (18kg for low-speed ATC) | |
| Tool selection method | Shortest absolute distance | ||
| Tool change time (T to T) | 2.0 sec | ||
| Tool change time (C to C) | 2.7 sec | ||
| Motor | Spindle motor | kw | 18.5KW (30min)/15KW (continuous) |
| Axis feed motor (X) | kw | 3.0 | |
| Axis feed motor (Y) | kw | 3.0 | |
| Axis feed motor (Z) | kw | 3.0 | |
| Axis feed motor (B) | kw | 1.8 | |
| Hydraulic pump motor | Kw | 2.2 | |
| Main Power Source | Power supply | AC200±10% 50Hz/60Hz±2% AC220V±10% 60Hz±2% 50kVA | |
| Air supply | Mpa | 0.5-0.8Mpa (supply pressure) 0.4Mpa (set pressure) 600L/min (atmospheric pressure) | |
| Mechanical Dimensions | Mechanical height | mm | 2,950 |
| Mechanical floor area | mm | 5,500×3,600 | |
| Mechanical weight (including CNC device) | kg | 11000 |
High-precision machining of complex parts in automotive, aerospace and machinery, with efficient multi-face processing and stable production capacity.

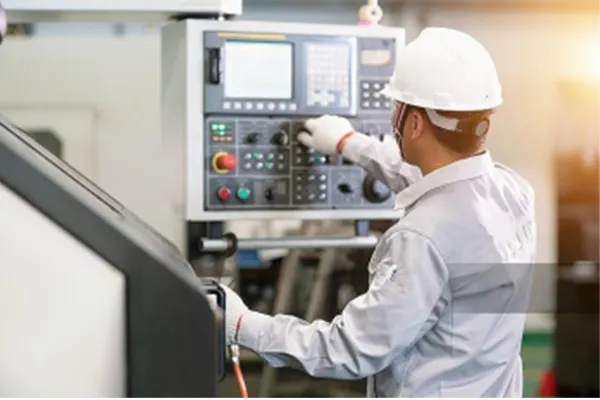

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
