The MCH-800/1000D/1250 is a heavy‑duty horizontal machining center with a rigid bed structure, high precision, and strong cutting performance. It features a reliable CNC system, automatic tool changer, and efficient coolant system. Suitable for complex parts in automotive, mold, and machinery industries.
| Specification | UNIT | MCH-800 | |
| Working Bench | Workbench size | mm | 800×800(OPT.) |
| Maxi load | kgf | 1200 | |
| Table top shape | mm | 24-M16 | |
| Minimum indexing | o | 0.001°(Index Table) | |
| Workbench indexing time | o | 1.2sec(90°) | |
| Height from ground to workbench | mm | 1160mm | |
| Travle | X axis travel | mm | 1100 |
| Y axis travel | mm | 850 | |
| Z axis travel | mm | 1050 | |
| Distance from the top of the workbench to the cener of the spindle | mm | 0-850 | |
| Distance from wokbench centerline to spindle center | 200-1250 | ||
| Spindle | Spindle taper | NO.50 | |
| Spindle speed level | Infinite velocity | ||
| Spindle speed | rpm | 6000 | |
| Feed Speed | X/Y/Z axis cutting speed | mm/rpm | 1-10,000 |
| X/Y/Z axis rapid speed | mm/rpm | 24000 | |
| Inching feed rate | mm | 1-4000 | |
| Motor | Spindle motor Axis feed motor(X) | kw | 22.0KW(30 points)/18.5KW (continuous) |
| Axis feed motor(Y) | kw | 4.5 | |
| Axis feed motor(Z) | kw | 4.5 | |
| Axis feed motor(B) | kw | 4.5 | |
| Hydraulic pump motor | kw | 1.8 | |
| Spindle motor | kw | 2.2 | |
| Magazine | tool handle model | MAS BT50 | |
| Pulling nail model | MAS P50T-Ⅱ | ||

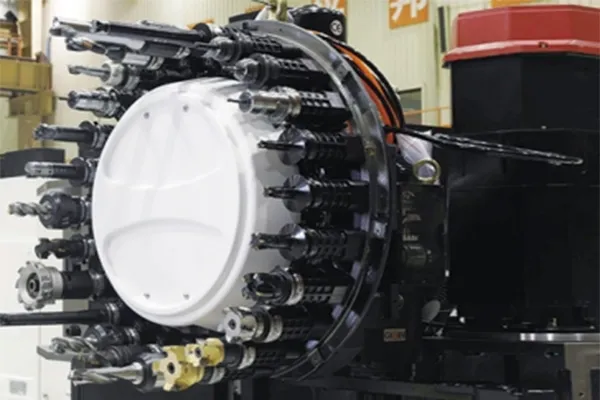

| Magazine capacity | 24 discs (Opt.40 chain type) | ||
| Maximum tool diameter | mm | ①100mm(without adjacent tools: φ125mm) | |
| Maximum tool length | kg | 350 | |
| Maximum tool weight | 15kg(18kg for vulgar ATC) | ||
| Tool selection method | Minimum absolute distance | ||
| Tool exchange time(T to T) | 2.0 | ||
| Tool exchange time(C to C) | 2.7 | ||
High-precision machining of complex parts in automotive, aerospace and machinery, with efficient multi-face processing and stable production capacity.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
