TCM-1100 is a heavy-duty vertical machining center with rigid box guideways. It features high stability, strong cutting performance, and good vibration resistance. Suitable for mold, automotive, and mechanical parts processing with high precision and reliability.
| Type | TCM-1100(Hard rail) | |
X axis travel | mm | 1100 |
| Y axis travel | mm | 650 |
| Z axis travel(spindle box moves up and down) | mm | 600 |
| Spindle nose to worktable distance | mm | 150-760 |
| Spindle center to column shield surface distance | mm | 700 |
| Work table dimension | mm | 1300*650 |
| Work table maximum load | kg | 1000 |
| T-slot | mm | 18*100*5 |
| The maximum spindle speed | rpm | 10000 |
| Spindle taper | BT-40 | |
| Rapid feed(X/Y/Z) | m/min | 20/20/20 |
| Cutting speed(X/Y/Z) | mm/min | 1-10000 |

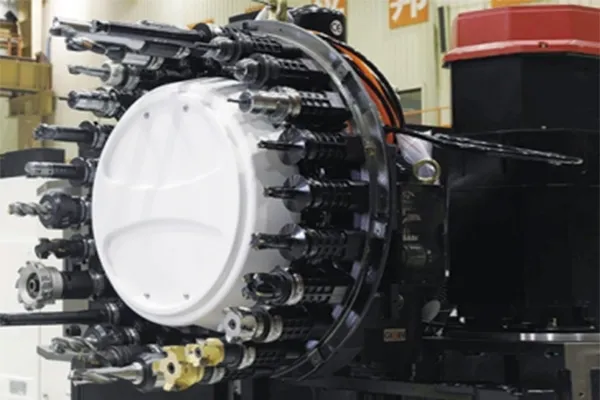

| Tool magazine | pcs | 24 |
| Max.tool diameter (adjacent tool/no adjacent tool) | mm | Φ80 |
| Max.Tool length | mm | 300 |
| Max.Tool weight | kg | 7 |
| Tool change method | ARM TYPE | |
| Min.Time of Tool Change(s) | sec. | 2.0 |
| Main motor power(continuous/30 minutes) | kw | 11/15 |
| X/Y/Z axis feed motor power | kw | 3.0/3.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 20 |
| Height | m | 2500 |
| Dimension | mm | 3200*2350 |
| Weight | kg | 9500 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.

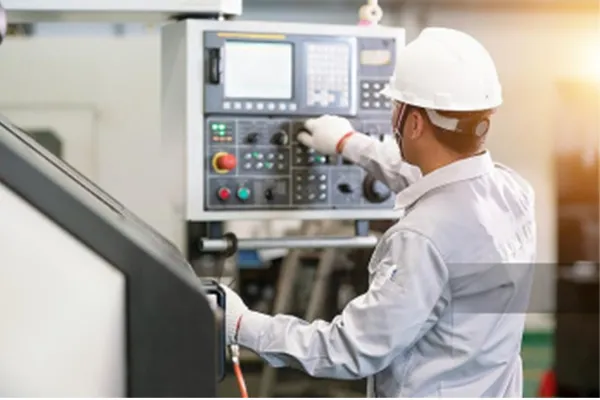

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
