TCM‑1300/1600 is a heavy‑duty vertical machining center with rigid box ways. It features a robust cast iron structure, strong cutting capability, high stability, and good vibration resistance. Suitable for heavy cutting, mold machining, and long‑term precision processing of large mechanical parts.
| Configuration | TCM-1300 | |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 650 |
| Distance from spindle center to workbench | mm | 150-800 |
| Distance from the center of the spindle to the cover surface of the column | mm | 760 |
| Table size | mm | 1500*700 |
| Max.load | kg | 1500 |
| T-slot | mm | 18*120*5 |
| Spindle speed | rpm | 6000 |
| Spindle taper | BT-50 | |
| X/Y/Z axis rapid speed | m/min | 20/20/20 |
| X/Y/Z axis cutting speed | mm/min | 1-10000 |

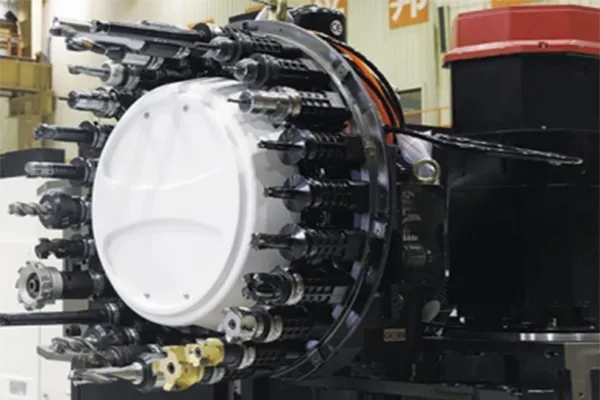

| Magazine | pcs | 24 |
| Max.magazine diameter | mm | φ120 |
| Max.magazine length | mm | 350 |
| Max.magazine weight | kg | 15 |
| Tool change method | Arm type | |
| Min.Time of tool change(s) | sec. | 2.0 |
| Spindle motor | kw | 15 |
| X/Y/Z axis servo motor | kw | 3.0/3.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 20 |
| Machine height | m | 3500 |
| Machine tool dimensions | mm | 3600*2950 |
| Machine weight | kg | 10500 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.

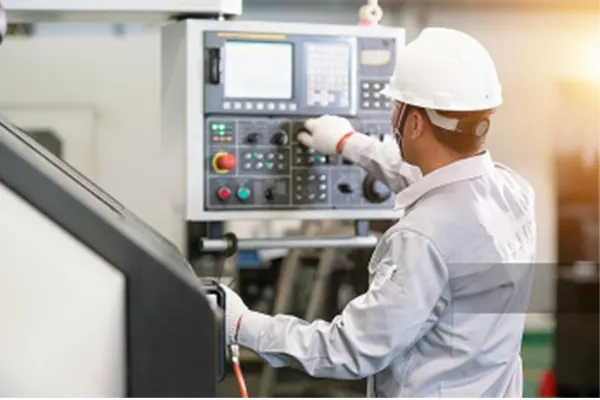

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
