TCM-1160 is a high-performance vertical machining center with a rigid heavy-duty structure, large table load, and wide travel. It features a high-speed spindle, stable CNC system, and excellent precision. Suitable for milling, drilling, tapping, and complex machining of molds and precision parts.
| Specification | TCM-1160 | |
| X axis travel(workbench moves left and right) | mm | 1100 |
| Y axis travel(table moves forward and backward) | mm | 600 |
| Z shaft stroke(spindle box moves up and down) | mm | 600 |
| Spindle nose to worktable distance | mm | 120-720 |
| Spindle center to column shield surface distance | mm | 650 |
| Work table dimension | mm | 1200*600 |
| Work table maximum load | kg | 800 |
| T-slot | mm | 18*100*5 |
| The maximum spindle speed | rpm | 10000 |
| Spindle taper | BT-40 | |
| Rapid feed(X/Y/Z) | m/min | 30/30/30 |
| Cutting speed(X/Y/Z) | mm/min | 1-10000 |

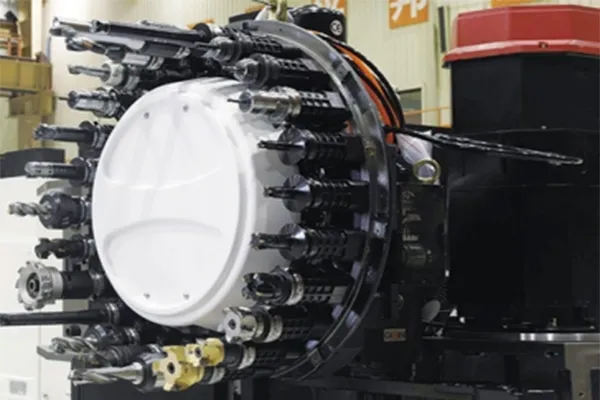

| Tool magazine | pcs | 24 |
| Max.tool diameter(adjacent tool/no adjacent tool) | mm | ①80 |
| Max.Tool length | mm | 300 |
| Max.Tool weight | kg | 7 |
| Tool change method | Walltype | |
| Min.Time of Tool Change(s) | sec. | 1.5 |
| Main motor power (continuous/30 minutes) | kw | 11/15 |
| X/Y/Z axis feed motor power | kw | 3.0/3.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 30 |
| Height | m | 2500 |
| Dimension | mm | 3200*2430 |
| Weight | kg | 7500 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.

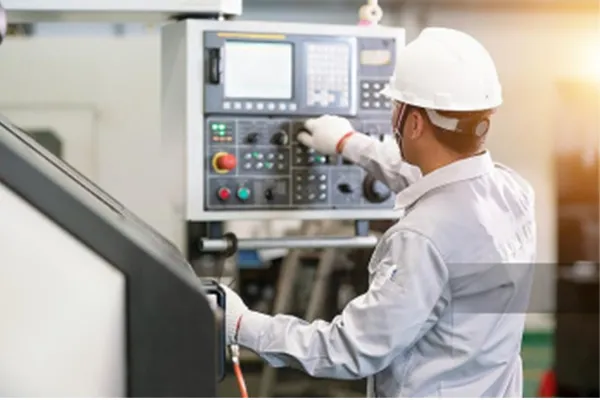

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
