TCM-1370 is a heavy-duty vertical machining center with a rigid structure, large table load, and high positioning accuracy. It is suitable for milling, drilling, tapping and complex machining of precision parts. Equipped with a reliable CNC system, it ensures stable performance and high efficiency for mass production.
| Configuration | TCM-1370 | |
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Distance from spindle center to workbench | mm | 120-820 |
| Distance from the center of the spindle to the cover surface of the column | mm | 720 |
| Table size | mm | 1400*700 |
| Max.load | kg | 1000 |
| T-slot | mm | 18*120*5 |
| Spindle speed | rpm | 8000 |
| Spindle taper | BT-40 | |
| X/Y/Z axis rapid speed | m/min | 24/24/24 |
| X/Y/Z axis cutting speed | mm/min | 1-10000 |

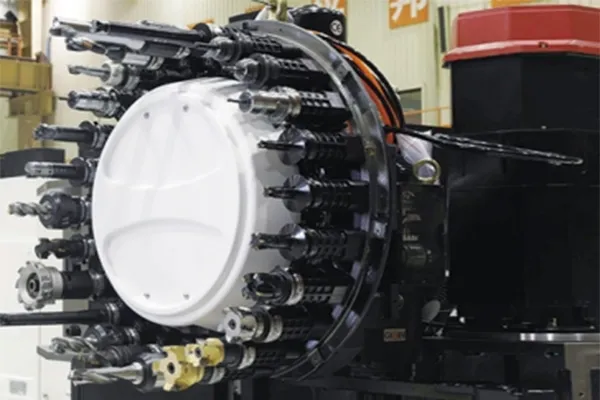

| Magazine | pcs | 24 |
| Max.magazine diameter | mm | ①80 |
| Max.magazine length | mm | 300 |
| Max.magazine weight | kg | 7 |
| Tool change method | Arm type | |
| Min.Time of Tool Change(s) | sec. | 2.0 |
| Spindle motor | kw | 11/15 |
| X/Y/Z axis servo motor | kw | 3.0/3.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 20 |
| Machine height | m | 2950 |
| Machine tool dimensions | mm | 3700*2800 |
| Machine weight | kg | 9500 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
