The FCL-280M is a high-precision horizontal lathe designed for reliable turning operations. It features a rigid structure, stable performance, and easy operation. Suitable for processing shafts, discs, and sleeves, it ensures high accuracy and efficiency for batch machining of metal parts.
| Specification | Unit | FCL-280M |
| Max.swing diameter of bed | mm | 500 |
| Saddle surface diameter | mm | 250 |
| Max.length of work piece | mm | 300 |
| Max.diameter of work piece | mm | 420 |
| Spindle head type | ASA | A2-6 |
| Hydraulic chuck size | in | 8 |
| Spindle bore diameter | mm | 62 |
| Spindle speed | rpm | 4500 |
| Spindle motor | kw | 7.5/11 |
| Spindle accuracy | mm | 0.003 |
| Max.Bar bore diameter | mm | 52 |
| Z axis travel | mm | 500 |
| X axis travel | mm | 220 |
| Z axis rapid movement | m/min | 30 |
| X axis rapid movement | m/min | 30 |
| Magazine | unit | 12 |
| Turning tool size | mm | 20×20 |
| Lining tool size | mm | 32 |
| Tail stoke base travel | mm | 400 |
| Quill travel | mm | 80 |
| Quill diameter | mm | 70 |
| Quill bore taper | MT | MT#4 |
| Top center drive mode | Hydraulic | |
| Tail stock positioning method | Manual | |
| Overall dimensions | M | 2.10×1.65×1.78 |
| Mechanical weight | kg | 3100 |

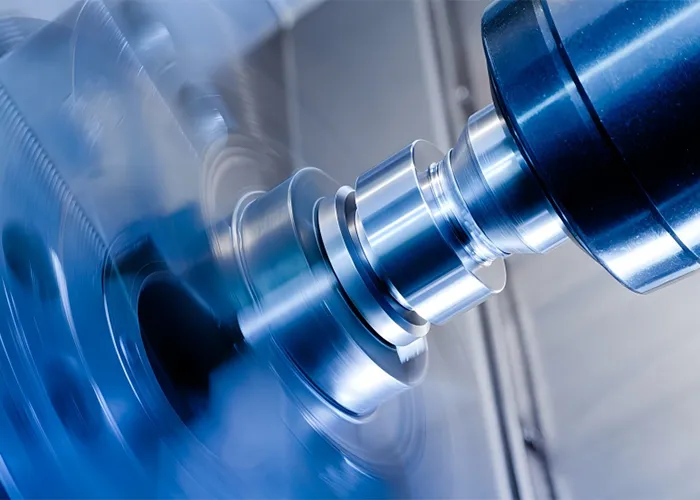

CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.

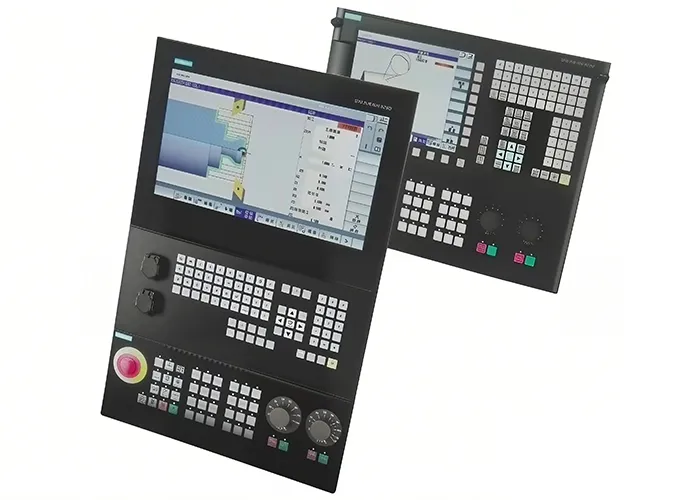

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
