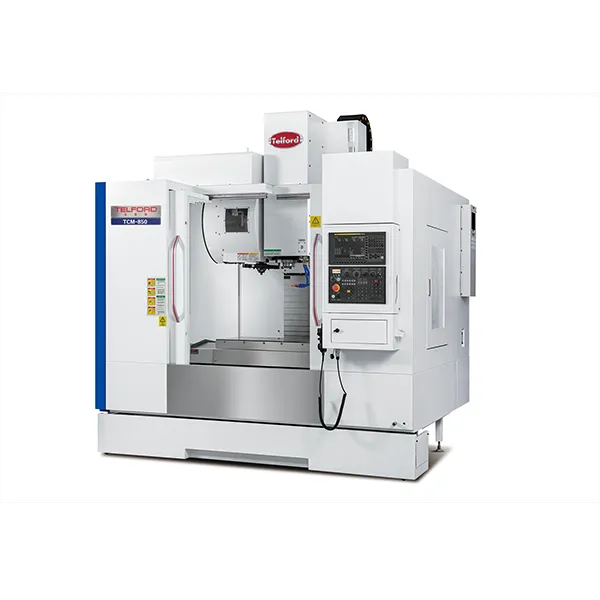

TCM-850 vertical machining center offers linear guideway and hard guideway versions. Linear guideway ensures high speed, precision, and efficiency for small/medium parts. Hard guideway provides strong rigidity, heavy cutting capacity, and stability for rough machining.
| Item | Unit | TCM-850 |
| Xaxis travel | mm | 800 |
| Y axis travel | mm | 500 |
| Z axis travel | mm | 500 |
| Distance from spindle center to worktable | mm | 120-670 |
| Distance from the spindle center to the surface of the column | mm | 550 |
| Table size | mm | 1000*500 |
| Max.load | kg | 600 |
| T-slot | mm | 5*18*90 |
| Spindle speed | rpm | 10000 |
| Spindle taper | BT-40 | |
| X/Y/Z axis rapid speed | m/min | 30/30/30 |
| X/Y/Z axis cutting speed | mm/min | 1-10000 |

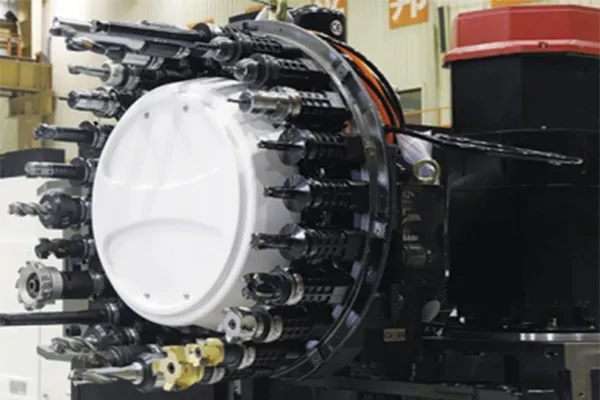

| Magazine | pcs | 24 |
| Max.magazine diameter | mm | Φ80 |
| Max.magazine length | mm | 250 |
| Max.magazine weight | kg | 7 |
| Tool change method | Knife arm type | |
| Min.Time of Tool Change(s) | sec. | 2.0 |
| Spindle motor | kw | 7.5/11 |
| X/Y/Z axis servo motor | kw | 2.0/2.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 20 |
| Machine height | m | 2500 |
| Machine tool dimensions | mm | 2430*2300 |
| Machine weight | kg | 5500 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
