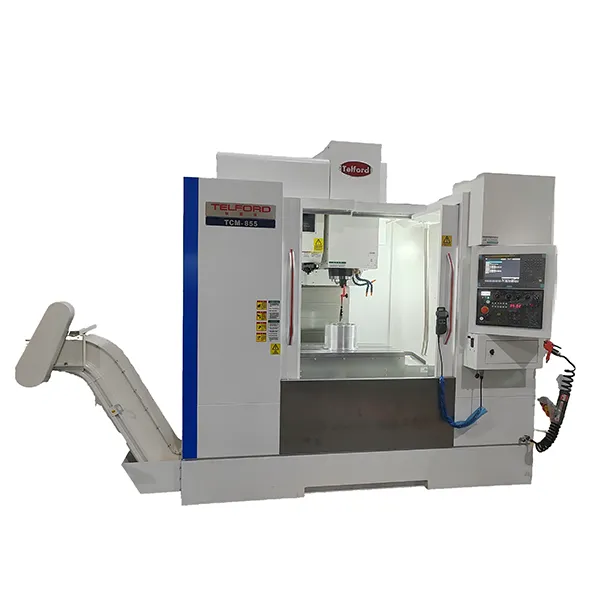

TCM-855 is a high-performance vertical machining center with linear guideways. It features high rigidity, fast movement, and excellent precision. Suitable for milling, drilling, tapping of complex parts. Stable, efficient, and widely used in auto parts and precision machinery manufacturing.
| Configuration | TCM-855 | |
| Xaxis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| Distance from spindle center to workbench | mm | 120-670 |
| Distance from the spindle center to the surface of the column | mm | 550 |
| Table size | mm | 1000*500 |
| Max.load | kg | 600 |
| T-slot | mm | 18*90*5 |
| Spindle speed | rpm | 10000 |
| Spindle taper | BT-40 | |
| X/Y/Z axis rapid speed | m/min | 36/36/36 |
| X/Y/Z axis cutting speed | mm/min | 1-10000 |

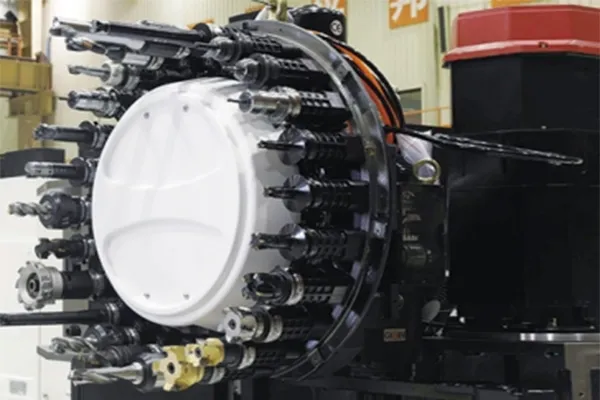

| Magazine | pcs | 24 |
| Max.magazine diameter | mm | φ80 |
| Max.magazine length | mm | 250 |
| Max.magazine weight | kg | 7 |
| Tool change method | Arm type | |
| Min.Time of Tool Change(s) | sec. | 1.5 |
| Spindle motor | kw | 7.5/11 |
| X/Y/Z axis servo motor | kw | 3.0/3.0/3.0 |
| Cutting coolant motor power | W | 760 |
| Air pressure demand | kg/cm² | 6 |
| Required power capacity | kva | 20 |
| Machine height | m | 2500 |
| Machine tool dimensions | mm | 2800*2100 |
| Machine weight | kg | 6850 |
CNC vertical machining centers are widely used for precise milling, drilling and tapping of complex metal parts in automotive, mold and mechanical manufacturing.

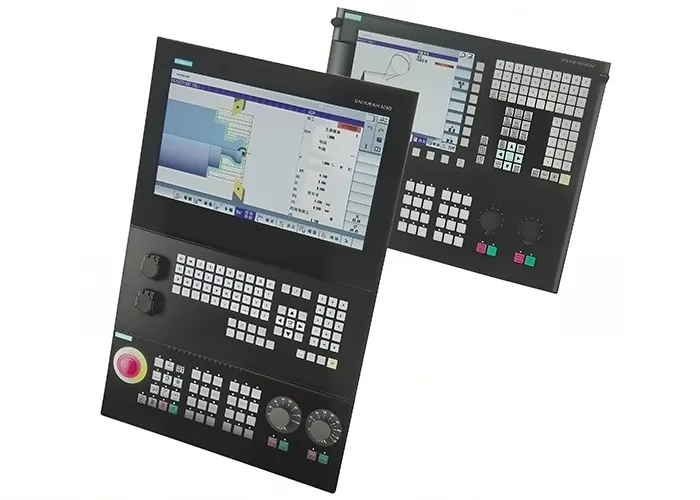

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
