TLM‑2518/4025/4017 are heavy‑duty CNC gantry vertical machining centers with robust gantry frames, high rigidity, and stable performance. They support milling, drilling, boring, tapping, and multi‑axis machining, ideal for large, complex workpieces in machinery, mold, and automotive industries.
| Machine model | Unit | TLM-4017 | |
| X-axis travel | mm | 4,000 | |
| Y-axis travel | mm | 2,100 | |
| Z-axis travel | mm | 800 | |
| Distance from spindle nose to worktable | Gear type 50# | mm | 180-980 |
| Distance between double columns (door width) | mm | 1,800 | |
| Worktable area | mm | 4,000×1,500 | |
| T-slot (size × quantity × pitch) - x-axis direction | mm | 22×7×200 | |
| Maximum load capacity of worktable | kg | 10,000 | |
| Spindle horsepower (continuous / 30min rated) | kW | 18.5/22 | |
| Spindle speed | rpm | 6,000 | |
| Spindle taper hole | - | BT50 | |
| Cutting feed rate | mm/min | 1-15,000 | |
| Rapid traverse rate | m/min | X/Y/Z：12/12/10 | |
| X,Y,Z feed motor (fanuc) | kW | X:7.0 Y:4.5 Z:4.5 | |
| Machine weight | kg | 28,500 | |
| (Length × width × height)*1 | m | 8.8×4.6×4.5 | |
| Tool magazine capacity | Vertical tool change | pcs | 24 # |
| Maximum tool weight*2 | kg | 15* | |
| Maximum tool length | mm | 300 | |
| Maximum tool diameter (full tool / adjacent tool free) | mm | Φ125/Φ250 | |
| Tool holder type | BT |

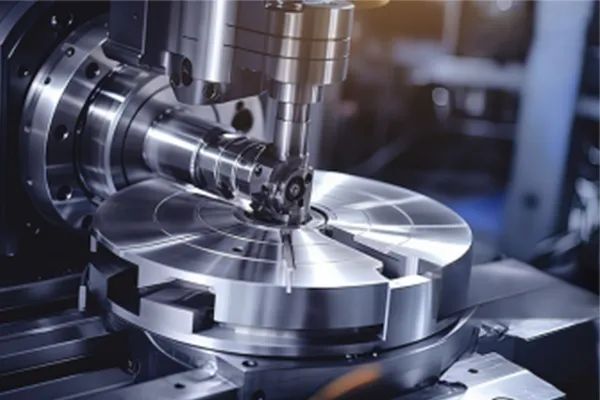

Ideal for machining large, complex parts in aerospace, automotive and mold industries with high precision and efficiency.

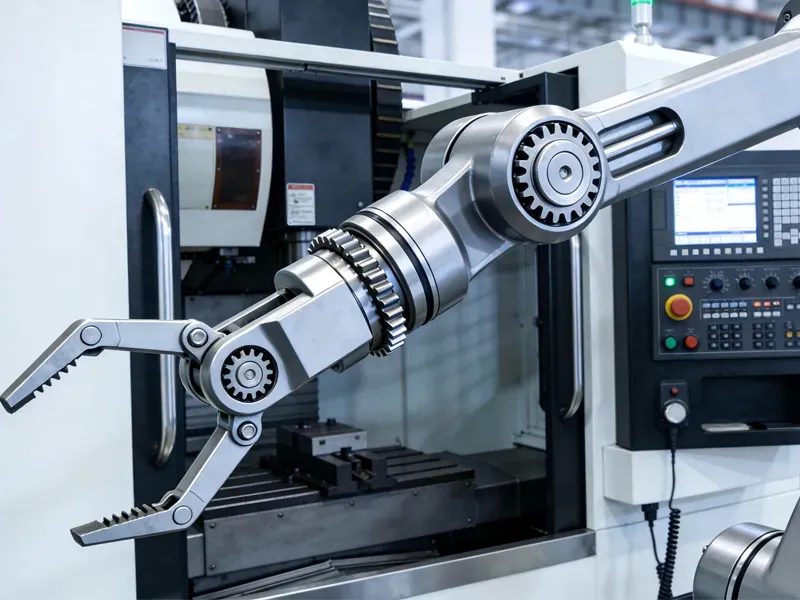

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
