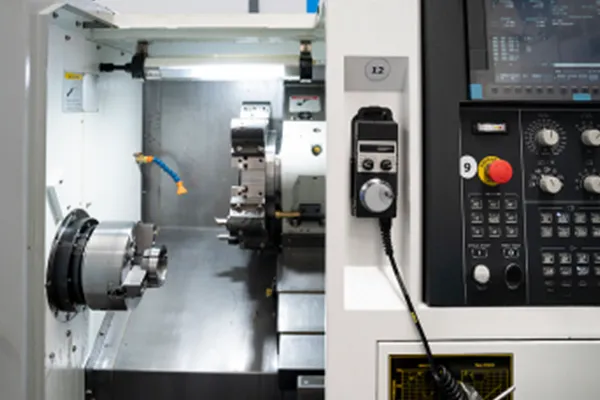

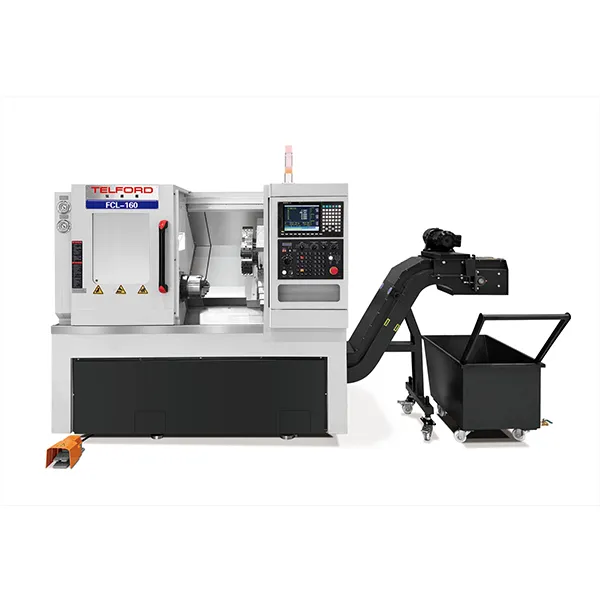

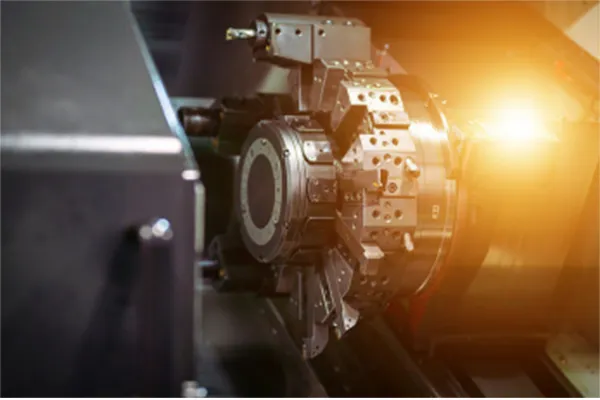

FCL-160 is a high-precision CNC slant-bed lathe equipped with a servo turret. It features a rigid Meehanite cast iron structure, 45° slant bed, high positioning accuracy, and stable performance. Ideal for mass production of shafts, pins, sleeves and precision metal components with high efficiency and reliability.
| Specification | Unit | FCL-160 |
| Max.swing diameter of bed | mm | 420 |
| Saddle surface diameter | mm | 200 |
| Max.length of work piece | mm | 350 |
| Max.diameter of work piece | mm | 400 |
| Spindle head type | ASA | A2-5 |
| Hydraulic chuck size | in | 6 |
| Spindle bore diameter | mm | 48 |
| Spindle speed | rpm | 5000 |
| Spindle motor | kw | 5.5/7.5 |
| Spindle accuracy | mm | 0.003 |
| Max.Bar bore diameter | mm | 45 |
| Z axis travel | mm | 380 |
| X axis travel | mm | 190 |
| Z axis rapid movement | m/min | 30 |
| X axis rapid movement | m/min | 30 |
| Magazine | unit | 12 |
| Turning tool size | mm | 20×20 |
| Lining tool size | mm | 32 |
| Tail stoke base travel | mm | 400 |
| Quill travel | mm | 80 |
| Quill diameter | mm | 70 |
| Quill bore taper | MT | MT#4 |
| Top center drive mode | Hydraulic | |
| Overall dimensions | M | 2.20×1.55×1.70 |
| Mechanical weight | kg | 2500 |
CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
