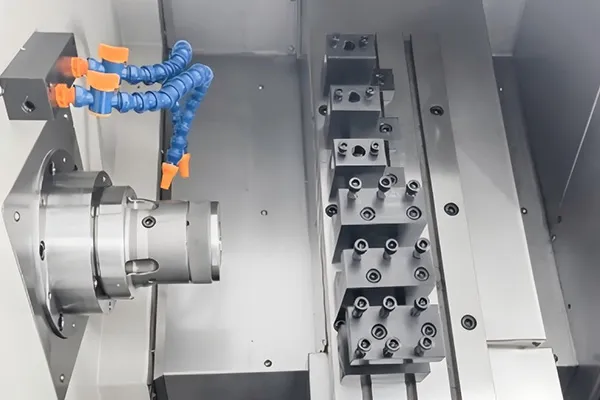

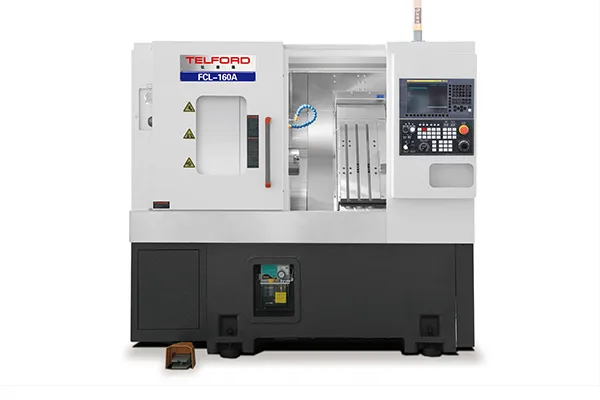

FCL-160A is a high-precision gang tool CNC lathe ideal for mass production of small precision shafts and pins. It features a rigid structure, fast tool change, stable running, high machining accuracy, and excellent efficiency. Suitable for automatic mass production with reliable performance.
| Specification | Unit | FCL-160A |
| Max.swing diameter of bed | mm | ①330 |
| Saddle surface diameter | mm | ①235 |
| Max.length of work piece | mm | 290 |
| Max.diameter of work piece | mm | φ200 |
| Spindle head type | ASA | A2-5 |

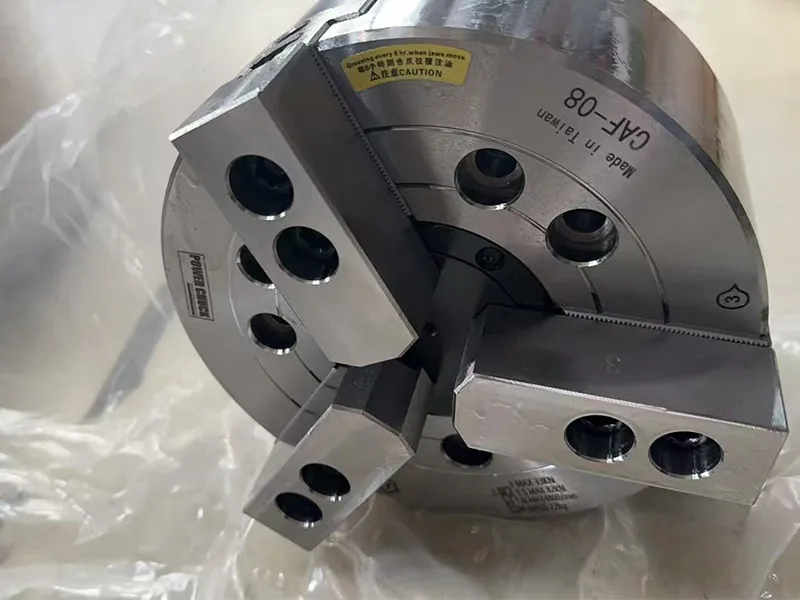

| Hydraulic chuck size | in | 6 |
| Spindle bore diameter | mm | ①48 |
| Spindle speed | rpm | 4000 |
| Spindle motor | kw | 7.5/11 |
| Spindle accuracy | mm | 0.003 |
| Max.Bar bore diameter | mm | φ45 |
| Z axis travel | mm | 300 |
| X axis travel | mm | 300 |
| Z axis rapid movement | m/min | 30 |
| X axis rapid movement | m/min | 30 |
| Magazine | unit | 5 |
| Turning tool size | mm | 20×20 |
| Lining tool size | mm | 25 |
| Tail stoke base travel | mm | / |
| Quill travel | mm | / |
| Quill diameter | mm | / |
| Quill bore taper | MT | / |
| Top center drive mode | / | |
| Overall dimensions | M | 1.95×1.6×1.65 |
| Mechanical weight | kg | 2000 |
CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.

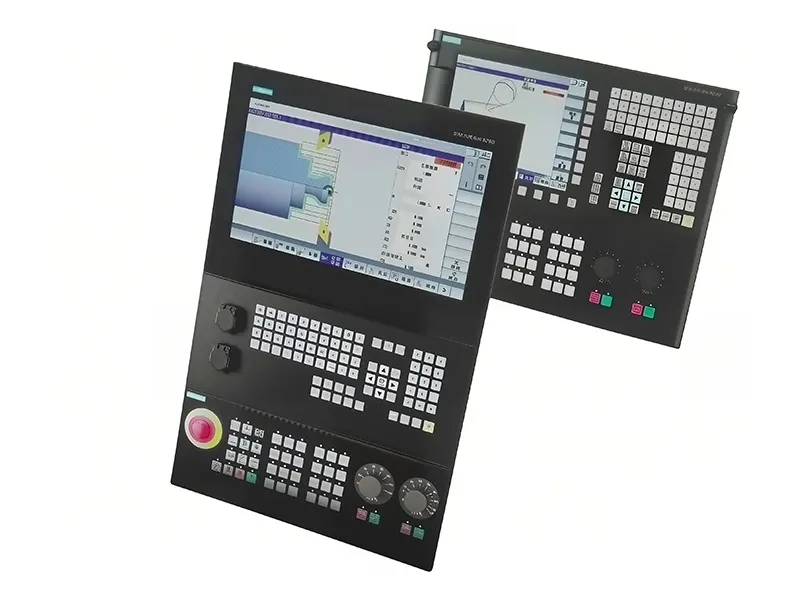

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
