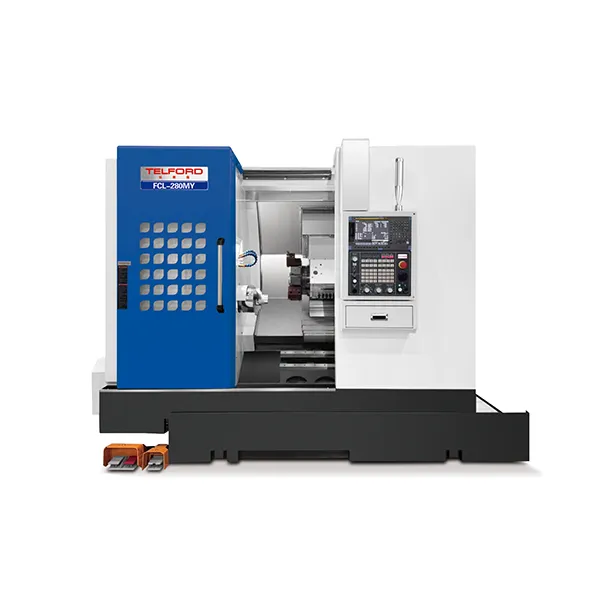

FCL-280MY is a high‑precision turn‑mill machining center equipped with an interpolated Y‑axis. It realizes Y‑axis motion via synchronous interpolation of X and C axes, enabling off‑center milling, flats, grooves and complex profiles in one clamping. It ensures high rigidity, stable accuracy and high efficiency for precision parts manufacturing.
| Specification | Unit | FCL-280MY Interpolation Y-Axis |
| Max.swing diameter of bed | mm | 550 |
| Saddle swing diameter | mm | 310 |
| Max.length of work piece | mm | 540 |
| Max.diameter of work piece | mm | 300 |
| Spindle head type | ASA | A2-6 |
| Hydraulic chuck size | in | 8 |
| Spindle bore diameter | mm | 62 |
| Max.Bar bore diameter | mm | 52 |
| Max.Spindle speed | rpm | 4500 |
| Spindle motor | kw | 11/15 |
| X/Z axis Motor | kw | 3 |
| Y axis Motor | kw | 3 |
| Power-driven tool motor | kw | 4.5 |
| Z axis travel | mm | 630 |
| X axs travel | mm | 230 |
| Y axis travel | mm | ±50 |
| Z axis rapid movement | m/min | 30 |
| X axis rapid movement | m/min | 30 |
| Magazine | unit | 12 |
| Square tool holder size | mm | 25×25 |
| Boring tool holder size | mm | 32 |
| Live tool holder spec | BMT-55 | |
| Tailstock travel | mm | 500 |
| Quilltravel | mm | 150 |
| Quil diameter | mm | 70 |
| Quill taper | MT#4 | |
| Quill drive type | Hydraulic | |
| Tailstock positioning method | Manual | |
| Overall dimensions | M | 2.8×1.95×2.1 |
| Mechanical weight | kg | 4500 |
CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
