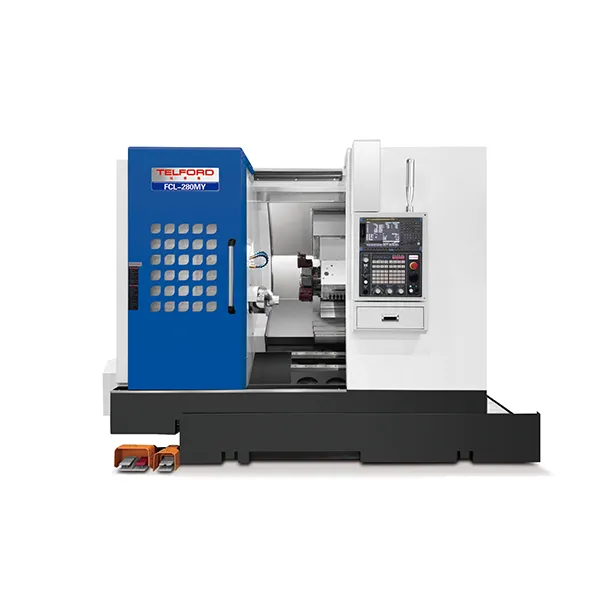

FCL-280MY is a high-precision CNC turn-mill machine with a 45° slant bed structure. It integrates turning, milling, drilling and tapping in one clamping. With high rigidity, stable accuracy and efficient chip removal, it is ideal for complex shaft and precision parts in mass production.
| Specification | Unit | FCL-280MY Vertical Y-Axis |
| Max.swing diameter of bed | mm | φ500 |
| Saddle swing diameter | mm | φ300 |
| Max.length of work piece | mm | 420 |
| Max.diameter of work piece | mm | φ250 |
| Spindle head type | ASA | A2-6 |
| Hydraulic chuck size | in | 8 |
| Spindle bore diameter | mm | φ62 |
| Max.Bar bore diameter | mm | φ52 |
| Max.Spindle speed | rpm | 4500 |
| Spindle motor | kw | 7.5/11 |
| X/Z axis motor | kw | 1.8 |
| Y axis motor | kw | 1.2 |
| Power-driven tool motor | kw | 2.7 |
| Z axis travel | mm | 460 |
| X axs travel | mm | 220 |
| Y axis travel | mm | ±50 |
| Z axis rapid movement | m/min | 30 |
| X axis rapid movement | m/min | 30 |
| Magazine | unit | 12 |
| Square tool holder size | mm | 20×20 |
| Boring tool holder size | mm | 32 |
| Live tool holder spec | BMT-45 | |
| Tailstock travel | mm | 400 |
| Quill travel | mm | 80 |
| Quil diameter | mm | 70 |
| Quill taper | MT#4 | |
| Quill drive type | Hydraulic | |
| Tailstock positioning method | Manual | |
| Overall dimensions | M | 2.38×1.65×2.1 |
| Mechanical weight | kg | 3800 |

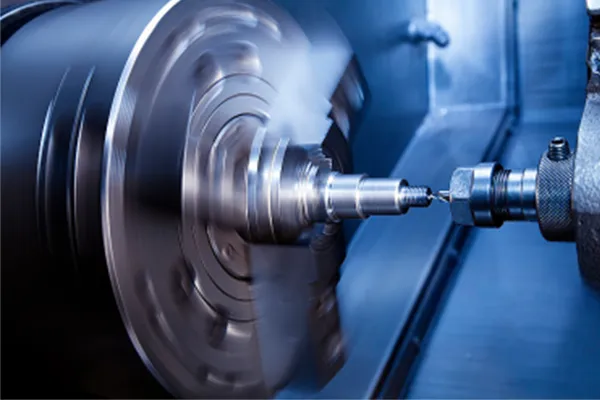

CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.

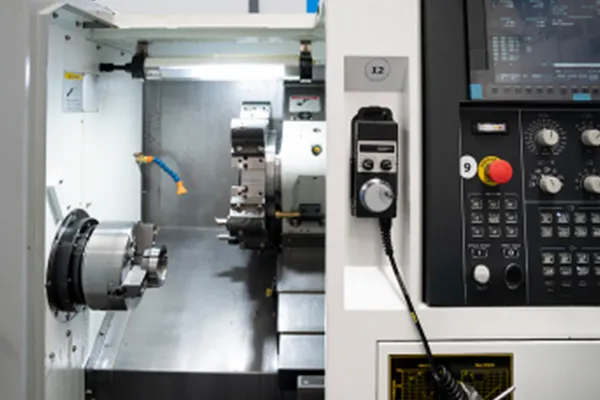

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
