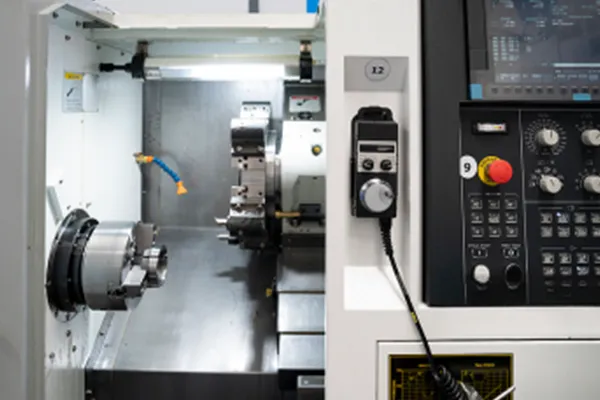

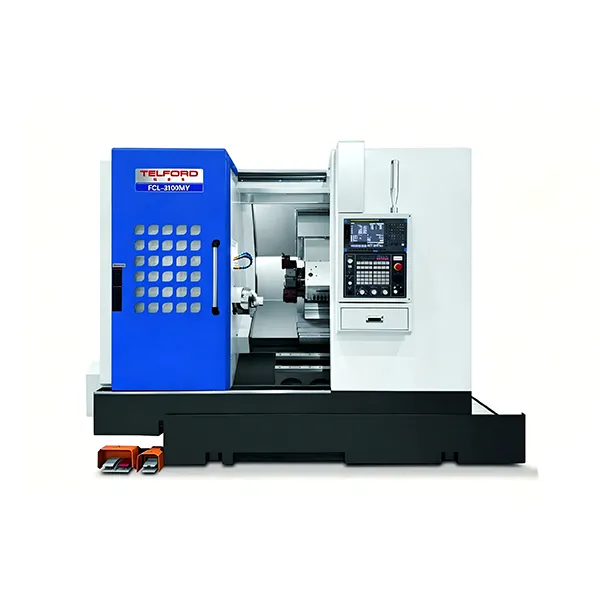

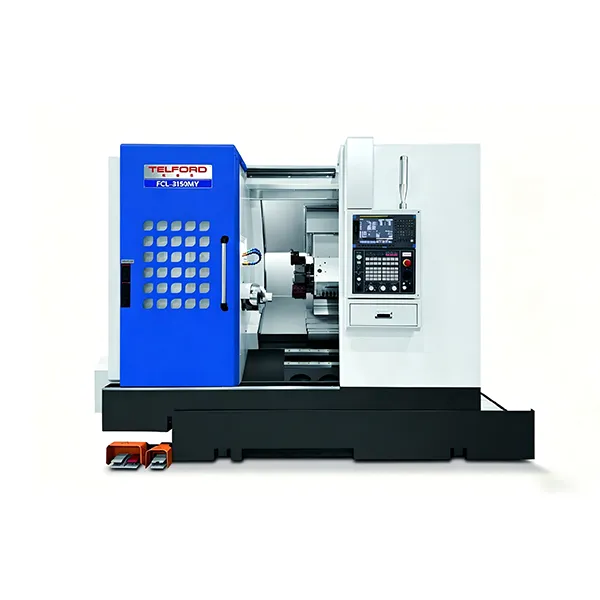

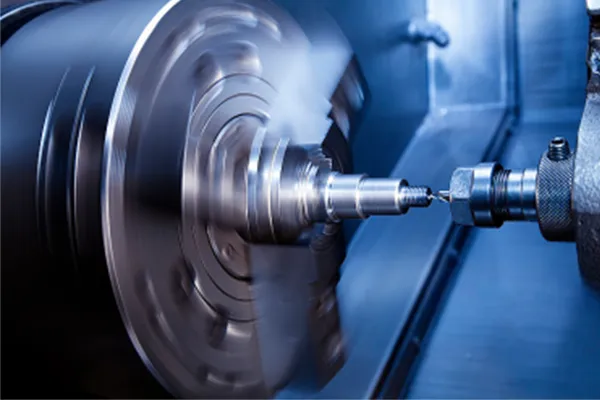

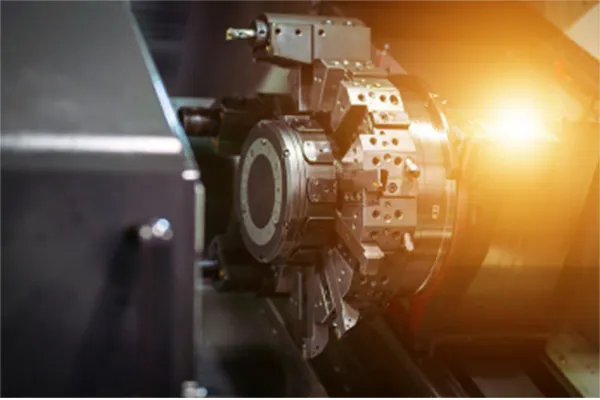

FCL‑3100MY/3150MY are large‑stroke CNC turn‑mill centers with extended X/Z travel for longer workpieces. Built with rigid 45° slant bed and live tools, they enable one‑setup turning, milling, drilling and tapping. High precision, stability and efficiency for complex shaft and precision parts in mass production.
| Specification | Unit | FCL-3100MY |
| Max.swing diameter of bed | mm | 700 |
| Saddle surface diameter | mm | 430 |
| Max.length of work piece | mm | 500 |
| Max.diameter of work piece | mm | 1100 |
| Spindle head type | ASA | A2-8 |
| Hydraulic chuck size | in | 10 |
| Spindle bore diameter | mm | 88 |
| Spindle speed | rpm | 3500 |
| Spindle motor | kw | 15/18.5 |
| Max.Bar bore diameter | mm | 75 |
| Z axis travel | mm | 650 |
| X axis travel | mm | 280 |
| Y axis travel | mm | ±50 |
| Z axis rapid movement | m/min | 24 |
| X axis rapid movement | m/min | 24 |
| Magazine | unit | 12 |
| Tool holder | BMT-55 | |
| Power shaft speed | rpm | 4000 |
| Turning tool size | mm | 25×25 |
| Lining tool size | mm | 40 |
| Tail stoke base travel | mm | 980 |
| Quill travel | mm | 120 |
| Quill diameter | mm | 85 |
| Quill bore taper | MT | MT#5 |
| Overall dimensions | M | 3.36×1.80×1.96 |
| Mechanical weight | kg | 6800 |
CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.
This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
