FCL-310MY is a high-performance CNC turn-mill center with 45° slant bed, rigid structure, and live tooling. It integrates turning, milling, drilling, and tapping in one clamping, ensuring high precision, efficiency, and stability. Ideal for complex shafts, pins, and precision parts in mass production.
| Specification | Unit | FCL-310MY |
| Max.swing diameter of bed | mm | Φ650 |
| Saddle surface diameter | mm | Φ430 |
| Max.length of work piece | mm | φ500 |
| Max.diameter of work piece | mm | 650 |
| Spindle head type | ASA | A2-8 |
| Hydraulic chuck size | in | 10 |
| Spindle bore diameter | mm | φ88 |
| Spindle speed | rpm | 3500 |
| Spindle motor | kw | 15/18.5 |
| Spindle accuracy | mm | 0.003 |
| Max.Bar bore diameter | mm | φ75 |
| Z axis travel | mm | 650 |
| X axis travel | mm | 280 |
| Y axis travel | mm | ±50 |
| Z axis rapid movement | m/min | 24 |
| X axis rapid movement | m/min | 24 |
| Magazine | unit | 12 |
| Turning tool size | mm | 25×25 |
| Lining tool size | mm | 40 |
| Quill travel | mm | 120 |
| Quill diameter | mm | 85 |
| Quill bore taper | MT | MT#5 |
| Top center drive mode | Hydraulic | |
| Overall dimensions | M | 2.80×1.80×1.96 |
| Mechanical weight | kg | 5800 |

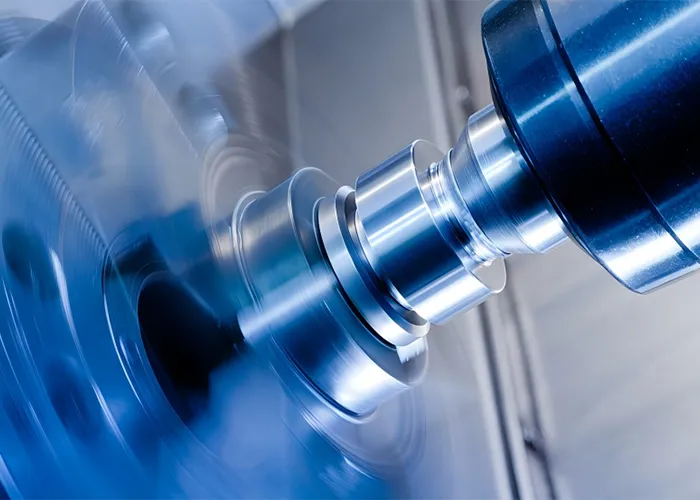

CNC lathes process shafts, discs and sleeves with high precision, efficiency and consistency for various mechanical parts.

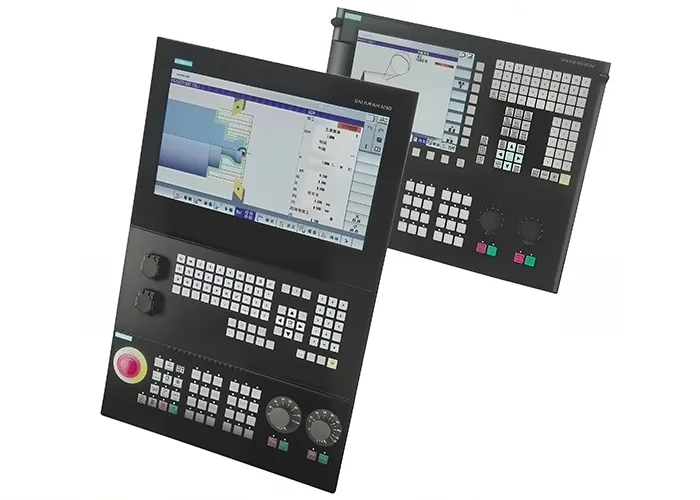

This machine has an intuitive and high-performance control system designed for smooth operation. Its user-friendly interface supports advanced programming and real-time diagnostics, enabling operators to integrate simplified workflows and fast data processing. The control system also accepts customer customization, selecting the most suitable system based on customer needs and budget.
